KIU-1205 GU10
OnBest Lighting
940540900
PRODUCT OVERVIEW
DESCRIPTION:
Featuring its constructure with GU10 lampholder,this outdoor led uplighter can be easy lamp replacement. Due to stainless steel bezel,a die cast aluminum body and lasting powder-coating finish, this led light fixture is extremely durable and IP67 rated against dust and water ingress.
TECHNICAL PARAMETER:
Item No. | KWL-1205 | |
Light source | GU10 LED | |
Lens(Beam angle) | 30° | |
Diffuser | clear toughened glass | |
PF | >0.7 | |
Input voltage(v) | AC100~277V | |
Feature | Flick free | |
Typical consumption(w) | 5w | |
Lumens(Lm) | 550 | |
CRI | >80 | |
Typical luminance(kv) | WW / W / CW | |
Dimension | Ø120*H130mm Cut-out:Ø110mm | |
Specification | ||
Name: | outdoor led up light / led up lighter / led spot light / surface mount up light | |
Appearance Color: | Polishing stainless steel | |
Material: | 304S.Steel / Die cast aluminum / clear toughened glass diffuser | |
Feature: | Easy for lamp replacement / Attractive price | |
IP Rating: | IP67 | |
IK Rate: | IK08 | |
Isolation: | CLASS I | |
Lifespan: | Durable(50,000 Hours) | |
Warranty: | 3 years | |
Application | ||
Plant lighting / illuminating pillars / lighting sign / Entry Gate | ||
Landscape Lighting / Outdoor Lighting / Industrial Lighting / Architectural Lighting | ||

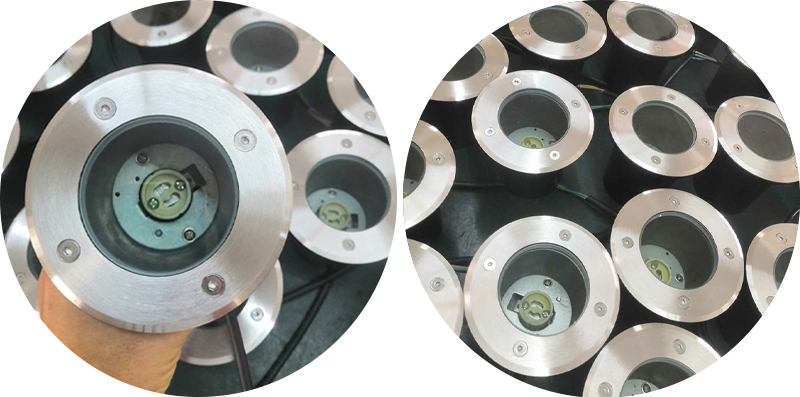

MASS PRODUCTION:
