KIU-1203B
OnBest Lighting
9405409000
PRODUCT OVERVIEW
DESCRIPTION

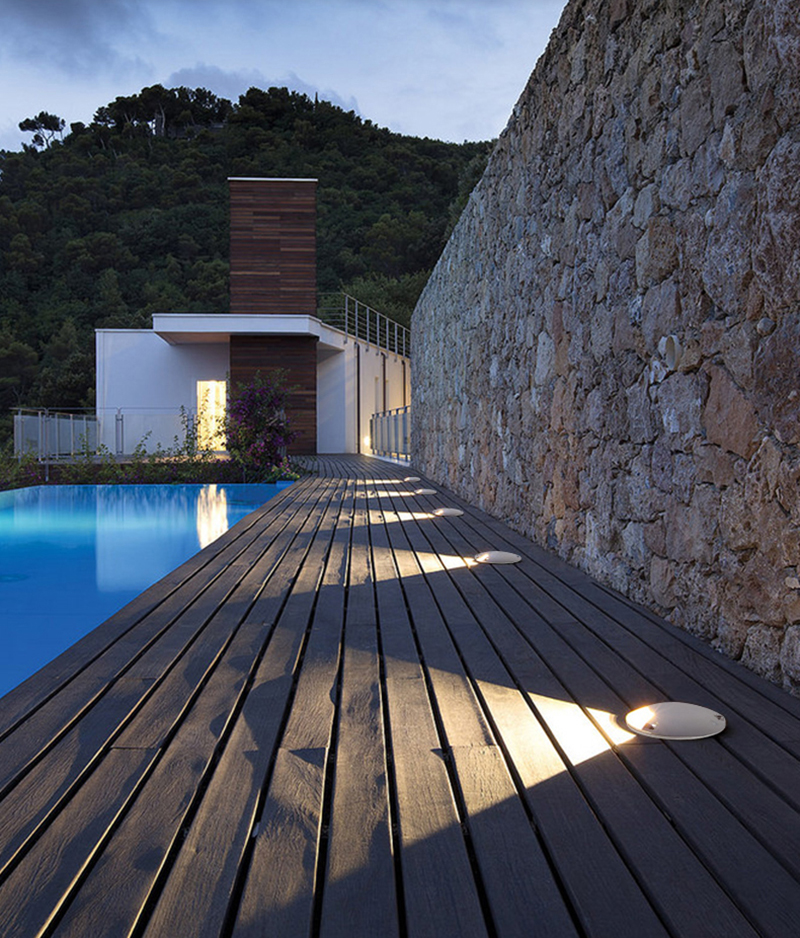

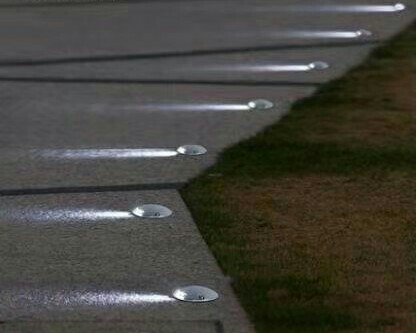

OnBest 3w recessed led floor light illuminates paths,patios or driveways and ensure them safely even in
case of maximum darkness. You can walk or drive over the light,up to a maximum load of 300kgs.
The impact resistance IK06 makes this luminaire a robust light for the deck,yard and garden.
TECHNICAL PARAMETERS
Item No. | KIU-1203B | |
Light source | Integrated LED | |
Lens(Beam angle) | 30° | |
Diffuser | Opal PC | |
Color temperature | 3000 kelvin | |
Input voltage(v) | AC100~277V | |
Typical operating current(mA) | - | |
Typical consumption(w) | 3W | |
Lumens(Lm) | 360 | |
CRI | >80 | |
Typical luminance(Im) | WW / W / CW | |
Dimension | Ø120*H110mm | |
Specification | ||
Name: | Recessed LED deck light / Outdoor ground light / Led floor Light | |
Appearance Color: | Silver | |
Material: | Die cast aluminum / Opal PC diffuser | |
Feature: | Anti-glare / corrosion-resistant | |
IP Rating: | IP67 | |
IK Rate: | IK06 | |
Isolation: | CLASS I | |
Lifespan: | Durable | |
WARRANTY: | 2 Years | |
Application | ||
Decks / Garden / Patios / Driveways / Pathways / Walkways / Entrance | ||
Outdoor Accent Light / Landscape Lighting / Statue Lighting | ||
APPLICATIONS
